Add to Cart

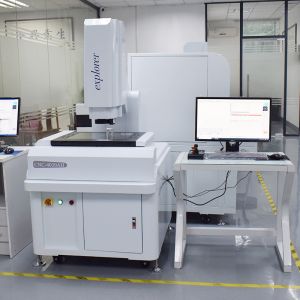

| Items | CNC-3020AH | CNC-4030AH | CNC-5040AH |
| Dimension(mm)(L×W×H) | 700*850*1650 | 800*900*1650 | 900*1050*1650 |
| Measuring range(mm)(X×Y×Z) | 300*200*200 | 400*300*200 | 500*400*200 |
| Measuring Accuracy(μm | 3+L/200 | 3+L/200 | 3+L/200 |
| Repeatability (μm) | 3 | 3 | 3 |
| Weight(kg) | 300 | 380 | 450 |
| Image and Measuring | CCD | Japanese SOnYCcD |
| | Len | High definition zoomlens/Continuous magnification 0.7-5.0x |
| | Magnification | 40-230X( For reference only. With different camera and lens the magnification will be different. ) |
| | ptical scale resolution | x/Y/z axis o.0002mm ( 0.2um ) |
| | Working distance | 108mm |
| Measurement software | Combine the 3D measurement software developed by the imported software function to improve the boundary resolution. |
| Driving system | X/Y/Z three-axis high performance Taiwan servo motor, double closed loop control system |
| Illumination | Program-controlled five-ring eight-zone surface light source,LED contour light source, coaxial light source.Different colors are added to different products. |
FAQ
1. How to Choose the Appropriate Specification
After get your demand,our professional team will work out best solutions by sending catalogue specification,demonstration video or other methods according to customers' need.
2.How to install and use your product .
We will provide operating instructions and video of English version, if near our agent,the spot service is easier or we can send engineer to your country to finish installation and training,it takes extra cost like air-ticket and accommodation .
3. Do you accept customized service?
Yes OEM is welcome .
